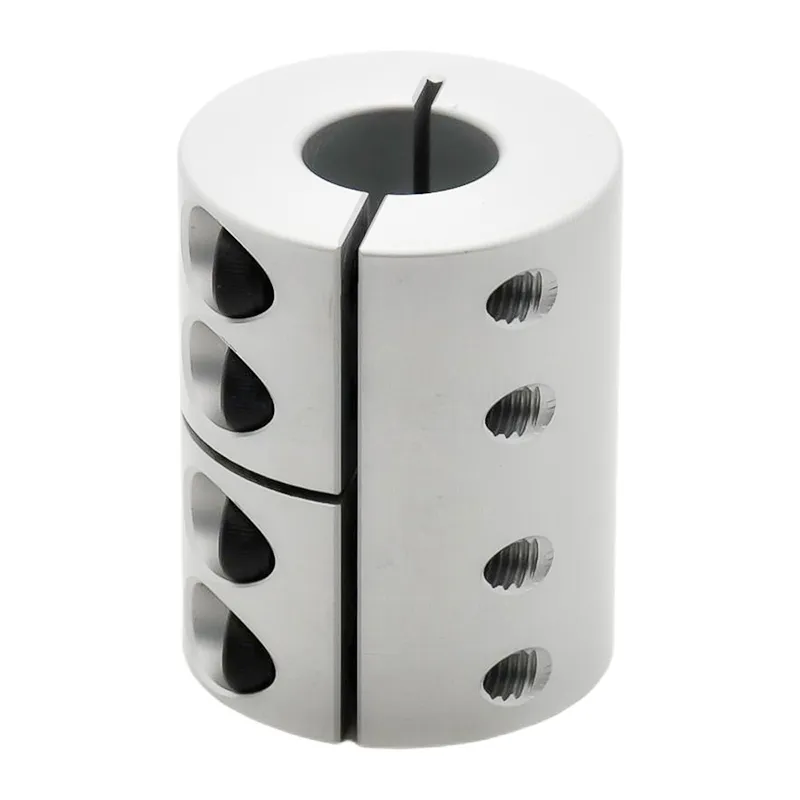

Understanding Rigid Couplings: Definition and Core Functionality
What Makes a Rigid Coupling Different?
Useful, inflexible couplings are necessary to transmit torque between two shafts. Unlike flexible couplings, which are designed to cushion misalignment and absorb shock loads, rigid couplings provide no cushion and so make shafts more susceptible to shock loads; however, they do keep the alignment better than flexible couplings. These couplings are critical in environments where precise alignment cannot be compromised, such as in manufacturing drives that require perfect operation of equipment. Made from durable steel, and aluminum, rigid couplings provide solid connections and are built for a long service life. The material selection also dictates how well the coupling can resist high levels of stress loading and its ability to withstand the test of time in harsh environments to perform at its best.
How Rigid Shaft Couplings Transmit Torque
Torque transmission in rigid shaft couplings is based on a direct connection of shafts. In this manner torsional stability is guaranteed and efficiencies are achieved to the limits in applications where precision is everything. Torsional stiffness prevents any relative rotation between linked axes, a priority in high precision torque transmission applications. Rigid couplings play a significant role in the automotive and manufacturing industries, where torque transmission is crucial. These couplings are essential in situations where the slightest misalignment or slippage can cause a machine to come to a grinding halt or operate less efficiently, helping to keep the machinery running smoothly.
Key Features and Advantages of Rigid Couplings
Torsional Stiffness and Zero Backlash
Twist Rigid couplings also feature torsional stiffness, which helps you to turn when needed while still delivering reliable, consistent power transfer. This is indicative of the ability of the coupling to avoid torsion (twisting) when under torque; resulting in minimal angular backlash which maximizes the accuracy of motion control systems. No backlash is yet another important benefit, providing a tight fit that eliminates the play that occurs between connecting shafts. This capability is critical in high precision applications such as robotics and CNC machines where precision positioning and repetitive motion is needed. For example, such features can allow robots to make precise fine movements, and assist CNC machines in retaining their precision due to a high level of accuracy from the first part to the subsequent ones.
High Torque Capacity in Motion Control Systems
Rigid couplings are a sturdy, high-precision coupling that typically does not allow for misalignment of the connected shafts.nonnull Rigid CouplingsProofTru-Line Rigid Couplings have a high torque capacity and their all metal construction makes them perfect for use in high power transmission applications. The fact that they can support a large amount of torque makes them ideal in motion control systems which includes servo motors and gearboxes where torque delivery needs to be maintained for smooth functioning. These are also well recognized in the industry for their standards and ratings that make them adhere to the standards, thereby ensuring that they can work with efficiency in the most demanding kind of environment. The strong design of rigid couplings make them capable of meeting high torque demands, which makes them the bread and butter when it comes to manufacturing or automotive applications, they need reliable power transmission and rigid couplings provide that for them.
Common Types of Rigid Couplings in Industrial Applications
Rigid Flange Couplings: Design and Use Cases
Rigid flange couplings are a staple in industrial settings due to their strength and versatility. These couplings are made from two fully-machined flanged hubs which are bored and keyed to the shafts and assembled using a series of through bolts. These elements are for high precision with tight tolerances designed for use with heavy loads. Flange couplings are common in such applications as the petroleum, chemical, and food processing industries, in which there is a need for a smooth bore of consistent diameter, ranging from tubes to long shafts used to connect such tubes. One of the main benefits of rigid flange couplings is their being maintenance free and carrying high loads, working with high level of efficiency even in difficult situations.
Rigid Conduit Couplings for Alignment-Critical Systems
The inflexible conduit couplings are indispensable in applications where the shaft alignment is critical for the proper operation. These couplings are made with enough accuracy to keep shafts in perfect alignment, and are used in applications such as conveyor systems and electric motors. Correct alignment also minimizes machine wear and makes your operation more efficient. Solid conduit couplings have an important function in ultra-high vibration systems (precision equipment) where reduced vibration is essential for equipment performance and life span. By maintaining accurate alignments of systems, couplings such as these play a role in the long life and dependability of machinery, making them valuable in pinpoint alignment-industrial applications.
Installation Requirements for Optimal Rigid Coupling Performance
Precision Alignment Techniques for Shafts
The precise alignment of shafts is essential for both prolonging the life and improving the reliability of rigid couplings. Correct alignment of the load is essential to properly distribute the load across the coupling and avoid premature failure of the system. Such instruments as laser alignment systems are very suitable for this purpose, exact measurements and adjustments are simple without any problems for the instrument. Good alignment practices are not enough and they are best combined with regular checking and maintenance. Improper alignment can cause elevated levels of vibration, as well as wear and tear, and equipment failure. Thus the correct alignment of the shafts is a task which must not be carried out only once but always when rigidly coupling.
Thermal Expansion Considerations in High-Speed Applications
Thermal expansion is one of the factors that greatly affect the performance of rigid couplings, in particular at high speeds. As machines heat up, their materials expand, and if that is not properly accounted for, it can lead to things being misaligned or damaged. Selecting materials with smaller coefficients of thermal expansion is one way to adapt to this effect. For example, the use of carbon fiber or composites can also help reduce these impacts. That is, in cases in which thermal expansion is not taken into consideration, remarkably serious mechanical failure is caused, such as, cracking the couple allows, or the deformation of the shaft. It makes such a difference to the efficiency and effectiveness of machinery, even under the most demanding circumstances, to be proactive about thinking ahead to thermal expansion!
When to Choose Rigid vs. Flexible Couplings
Applications Requiring Absolute Shaft Synchronization
There are some industrials where a rigid coupling is the better solution (for a full shaft synchronization). These are designed to make strong, high-accuracy alignment and repeated connection of two shafts even under the most difficult conditions. Rigid couplings are also used in applications that require a high level of precision, such as in aerospace or high-speed motors. Zero-backlash nature of rigid couplings appears useful in applications such as aero-space where a precise synchronization is necessary to maintain the engine balance and performance. High-speed motors, which require close synchronization for maximum efficiency, are similarly driven using rigid couplings. In these cases a lack of flexibility is not a major issue, as all that is required is to ensure the strict alignment of the two crescented shafts.
Limitations in Misalignment Compensation Scenarios
Rigid couplings have disadvantages, however, especially in relation to shaft misalignment. While Flexible couplings are able to accommodate incremental misalignment, rigid couplings are rigid and have no such flexibility. This rigidity renders them ill-suited to applications in which shafts are not in perfect alignment due to installation errors, mechanical wear, or changes due to thermal expansion or load excursions. Misalignments can cause levels of vibration, wear, or even system failure, making precise alignment incredibly important. Flexible couplings are the only alternative when misalignment will not be readily rectified or when it is likely to be repetitive. Flexible couplings are engineered to permit a small, but finite amount of angular and axial misalignment, to absorb the loads of these misalignments, rather than transferring the forces to the more fragile pump and motor bearings, and act as a cushion to the bearing in the event of misalignments and stretching and are often the ideal offset for components which require flexibility to operate; that is, they require a little bit of wiggle room to work at their optimal level of reliability.
FAQ
What is the main purpose of rigid couplings?
The main purpose of rigid couplings is to serve as inflexible connectors that effectively transmit torque between two aligned shafts, providing precise shaft alignment crucial in precision-oriented applications.
How do rigid couplings differ from flexible couplings?
Rigid couplings maintain precise shaft alignment and do not cushion misalignments or absorb shock loads, unlike flexible couplings that offer some flexibility to accommodate minor misalignments and vibrations.
What are the key benefits of using rigid couplings?
Key benefits of rigid couplings include torsional stiffness, zero backlash, high torque capacity, and the ability to ensure precise control in motion systems, making them ideal for high-stress and precision applications.
In which industries are rigid couplings commonly used?
Rigid couplings are commonly used in industries like automotive, manufacturing, oil and gas, chemicals, aerospace, and high-performance motors, where precise shaft alignment and reliable torque transmission are essential.
What are some limitations of rigid couplings?
Rigid couplings are limited in their ability to compensate for shaft misalignments. They require precise alignment and may lead to increased vibration, wear, and system failures if misalignments occur.
